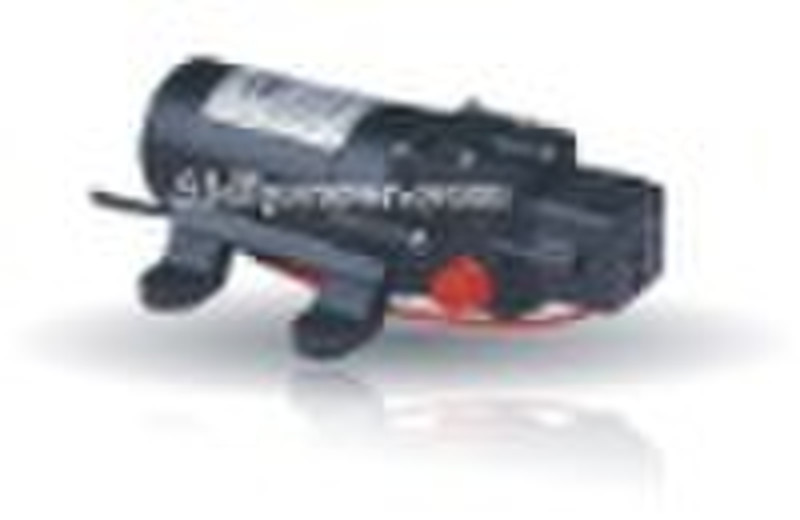

AIDI series FLO diaphragm pump
original price: 5,00 USD
Vicky Fang
Contact person
Basic Information
| Place of Origin | Fujian China (Mainland) |
|---|---|
| Brand Name | AIDI |
| Model Number | FLO |
| Structure | Diaphragm Pump |
| Usage | Water |
| Power | Electric |
| Standard or Nonstandard | Standard |
| Pressure | Low Pressure |
| Application | Submersible |
AIDI series FLO diaphragm pump Voltage Range:DC12V / DC24V Max Flow:5.1LPM(1.3GPM) Max Pressure:100PSI 12/24 Volt DC Motor-Driven Diaphragm Pumps FLO Series Mini Diaphragm Pumps Motor Type: 12/24 VDC, permanent magnet, thermally protected, Splash proof Leads:18 AWG, 35cm long (2-pin connector for option) Duty Cycle: Intermittent Pump Type:2-chamber positive displacement, self priming, capable of being run dry Liquid Temperature:140°F (60°C) Max. Priming Capabilities:4 feet (1.2 m) suction lift Max Pressure:80 PSI Inlet/Outlet Ports:3/8” hose barb Weight:0.57kg (1.25lbs) Certifications:CE Approvals ModelVoltsFlow (Litres/min)Pressure OffAmp DrawFLO-220112255 PSI1.8FLO-2202123.8/4.335 PSI3.0/3.5FLO-2202A12470PSI2.6FLO-2203122.6/3.180 PSI2.1/2.2FLO-240124255 PSI0.9FLO-2402243.8/4.335 PSI1.5/1.7FLO-2403242.670 PSI1FLO-2402A24470PSI1.3FLO-320112/24V5.180PSI4.5/2.8FLO-320212/24V5.1100PSI5.0/3.0
Delivery terms and packaging
Packaging Detail: standard export carton box Delivery Detail: within 15 days based on the formal order
Port: Fuzhou China
